A vision-language-action policy, and the workflow layer that commands it — on a rover that competes at the European Rover Challenge.
What this is

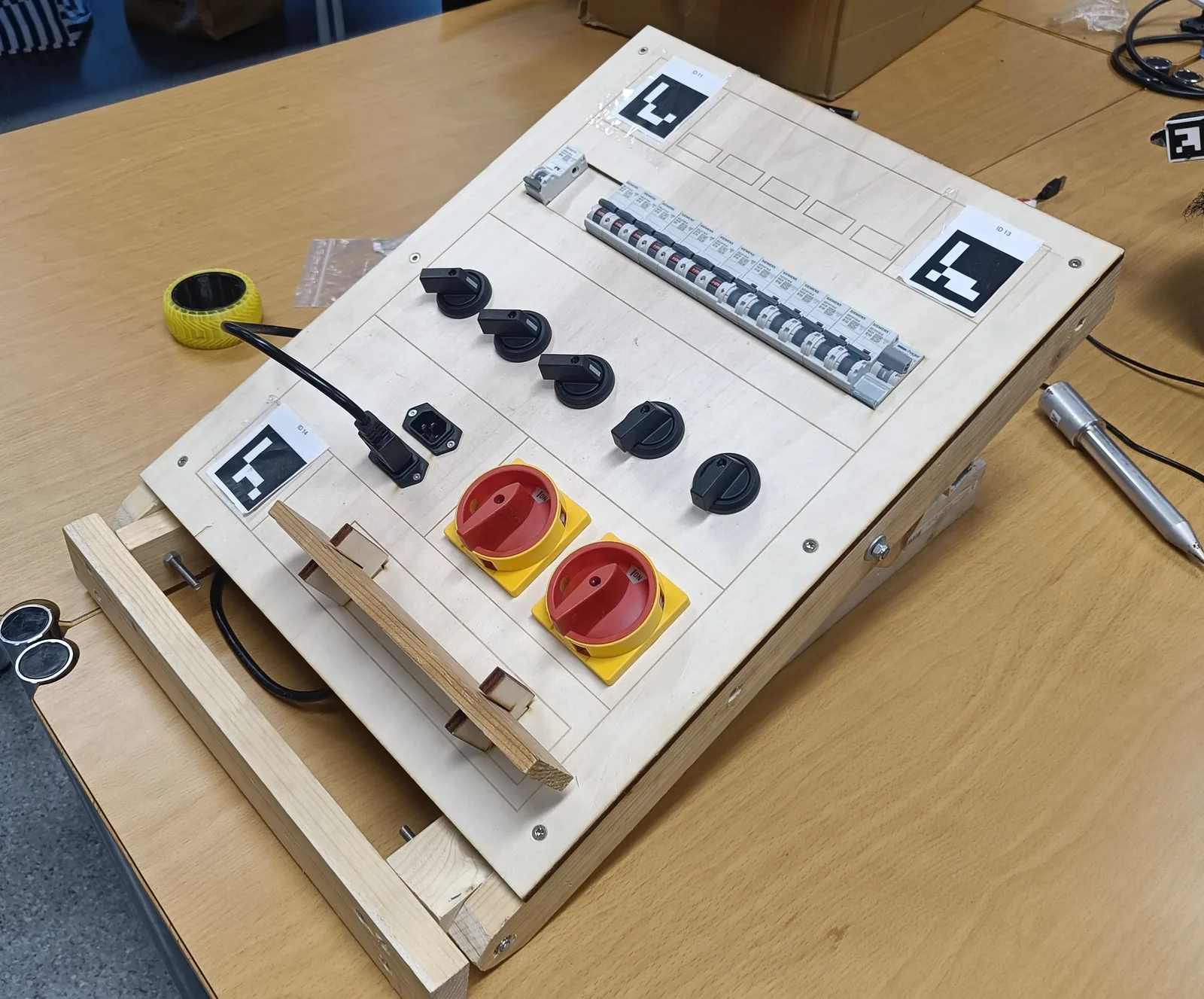

The FHNW Rover Team competes in the European Rover Challenge, where one of the tasks is operating a maintenance panel. Building on a ROS 2 stack that already ran per-task imitation policies, this thesis rebuilds how that manipulator is commanded — a policy that takes an instruction, and a workflow layer that composes the sequences around it.
The report covers all of this in detail. This page is for the parts a PDF cannot hold: a rover you can send somewhere, workflows you can open, and a policy you can argue with.
What was built
01
A single SmolVLA policy conditioned on a natural-language task description replaces the per-task ACT models of the previous project, post-trained with RECAP, an advantage-conditioned reinforcement-learning recipe. It is re-tasked by changing the instruction rather than by loading another model.
68.1 %
average LIBERO success, from 62.9 %
One full pass around the RECAP loop, rollout collection included.
RQ1 · task automation and reinforcement learning
Open the RECAP demo02

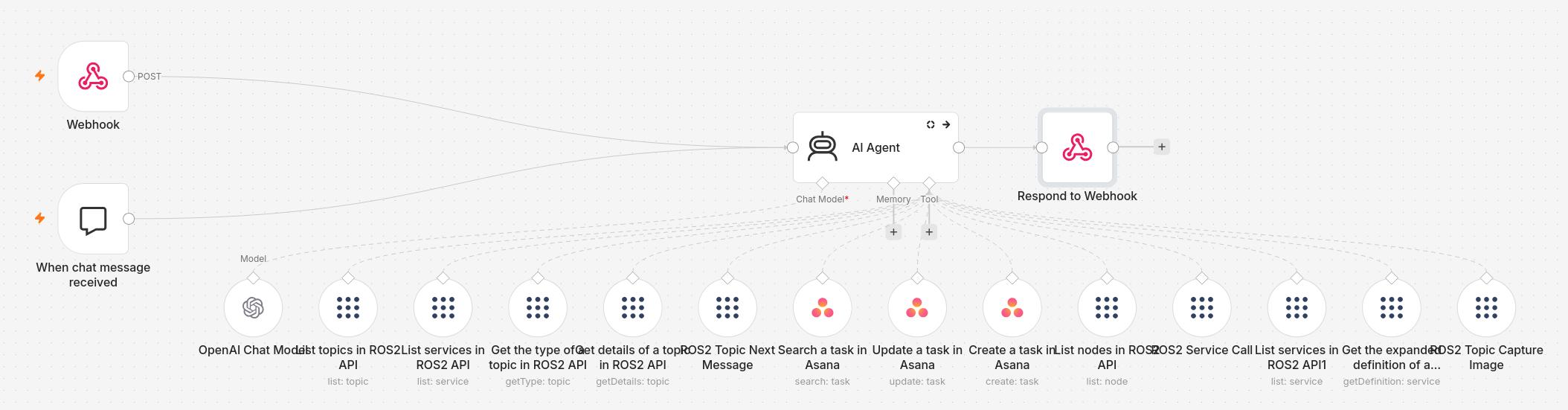

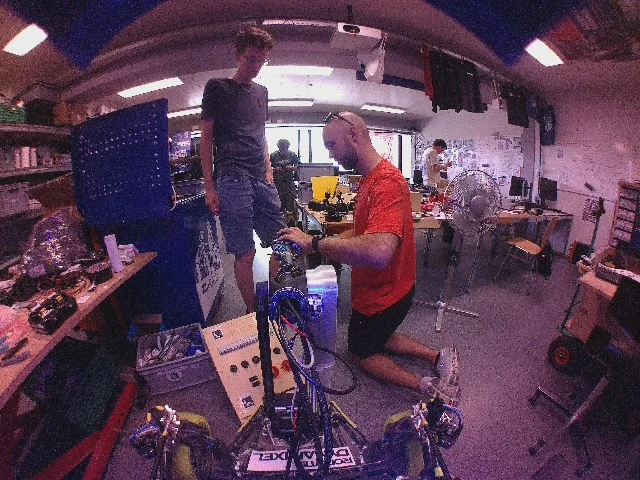

n8n is bridged to ROS 2 over rosbridge, giving operators a no-code way to compose task sequences from topics, services and actions, with the required order of operations enforced. An LLM agent built inside n8n answers free-text questions by calling those same tools, and a small fine-tuned model runs it on board at no per-call cost.
93 %
tool calls on 43 held-out prompts
Against the cloud configuration’s 92 %: fine-tuning closed the gap, it did not overtake it.
RQ1 · task automation, RQ3 · order enforcement and human-in-the-loop
Open the n8n demoAlongside them
330 ms
per chunk, ≈3 Hz replanning
Compiled to TensorRT as a VLM prefix and an action expert at different precisions, which is what fits the policy into the control cycle on the Jetson Orin.
64 cells
added to the state vector
The gripper’s 8×8 time-of-flight grid enters the policy through one configuration entry. Whether the policy is better for it was not measured; the ablation is future work.
18.1 mm
median error, 25 mm required

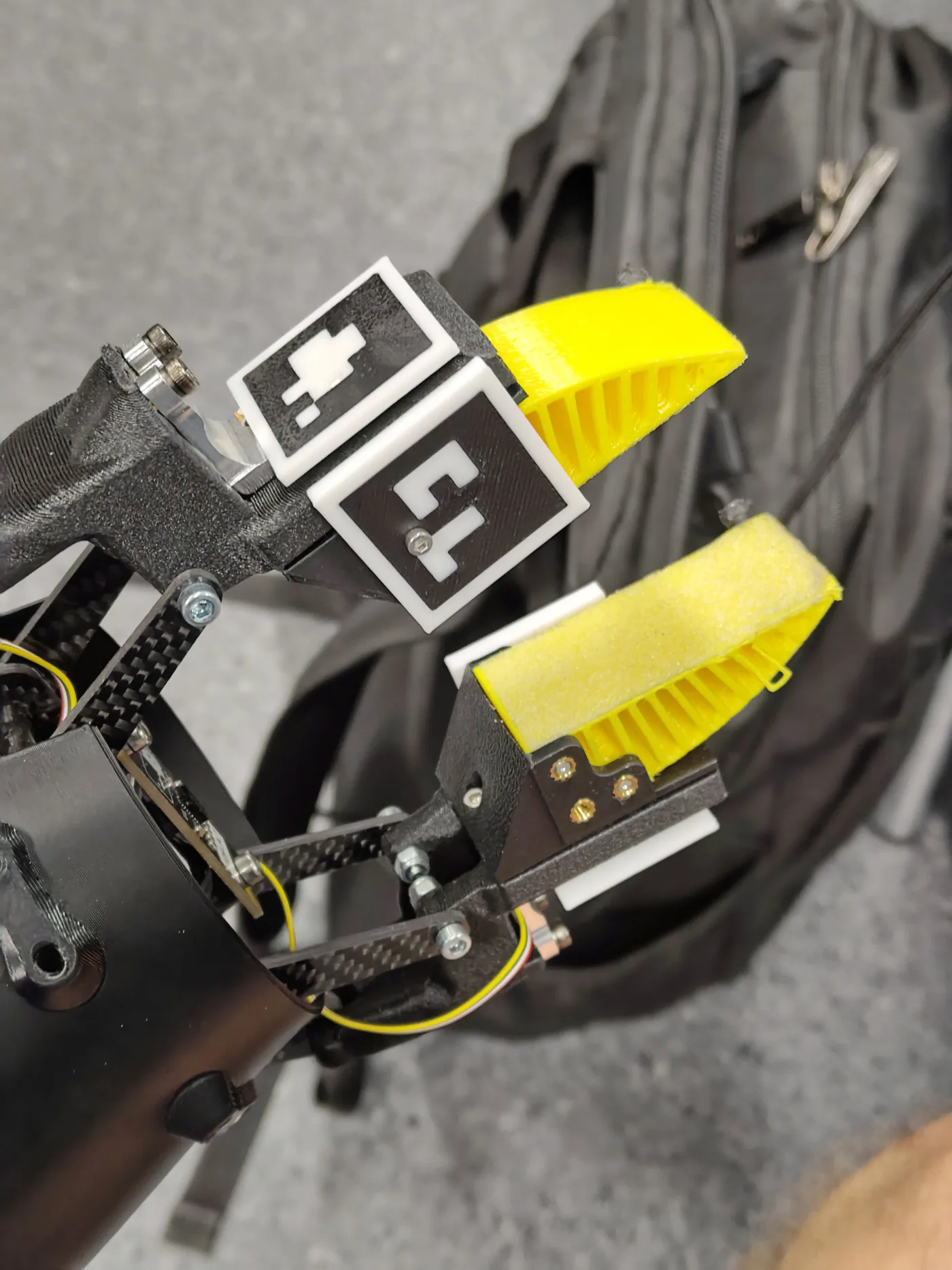

A classical approach phase for targets language cannot name precisely — “the third switch from the left” — handing the policy a consistent starting pose.
The layer underneath
Described last in the report as the supporting work it is, rather than as a contribution of its own.

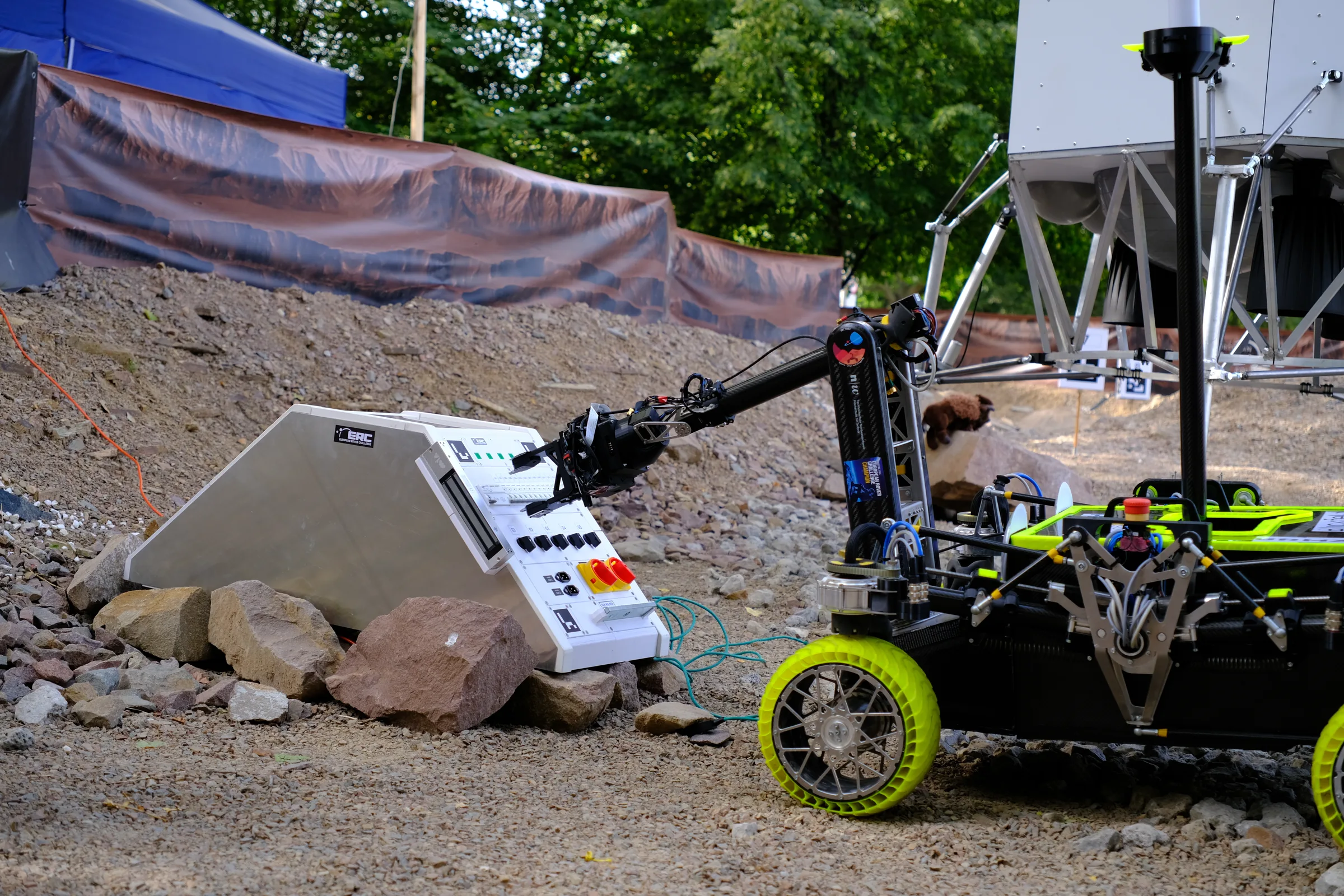

The six-degree-of-freedom manipulator is driven with FZI’s Cartesian controllers, extended here with a per-joint weighting that damps the forearm roll so it no longer absorbs wrist rotations, and mirrored by a MuJoCo model for smoke tests.
Both autonomous control modes are gated. A heartbeat from the operator station must be present, so a lost link halts autonomous motion without anyone having to act, and a latching software e-stop aborts the running policy or alignment goal and refuses new ones until it is reset.
The part a PDF cannot hold
Live · read-only

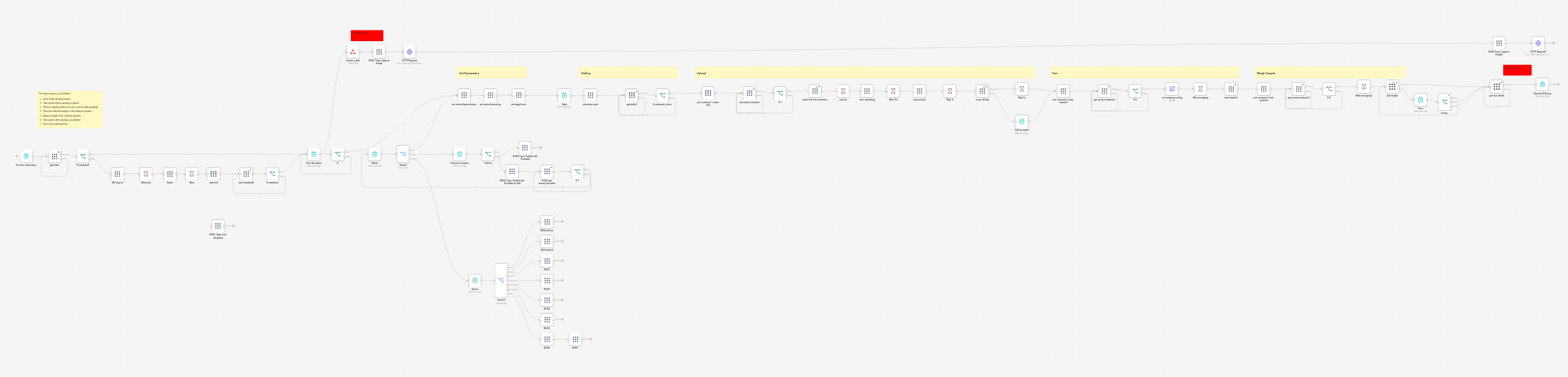

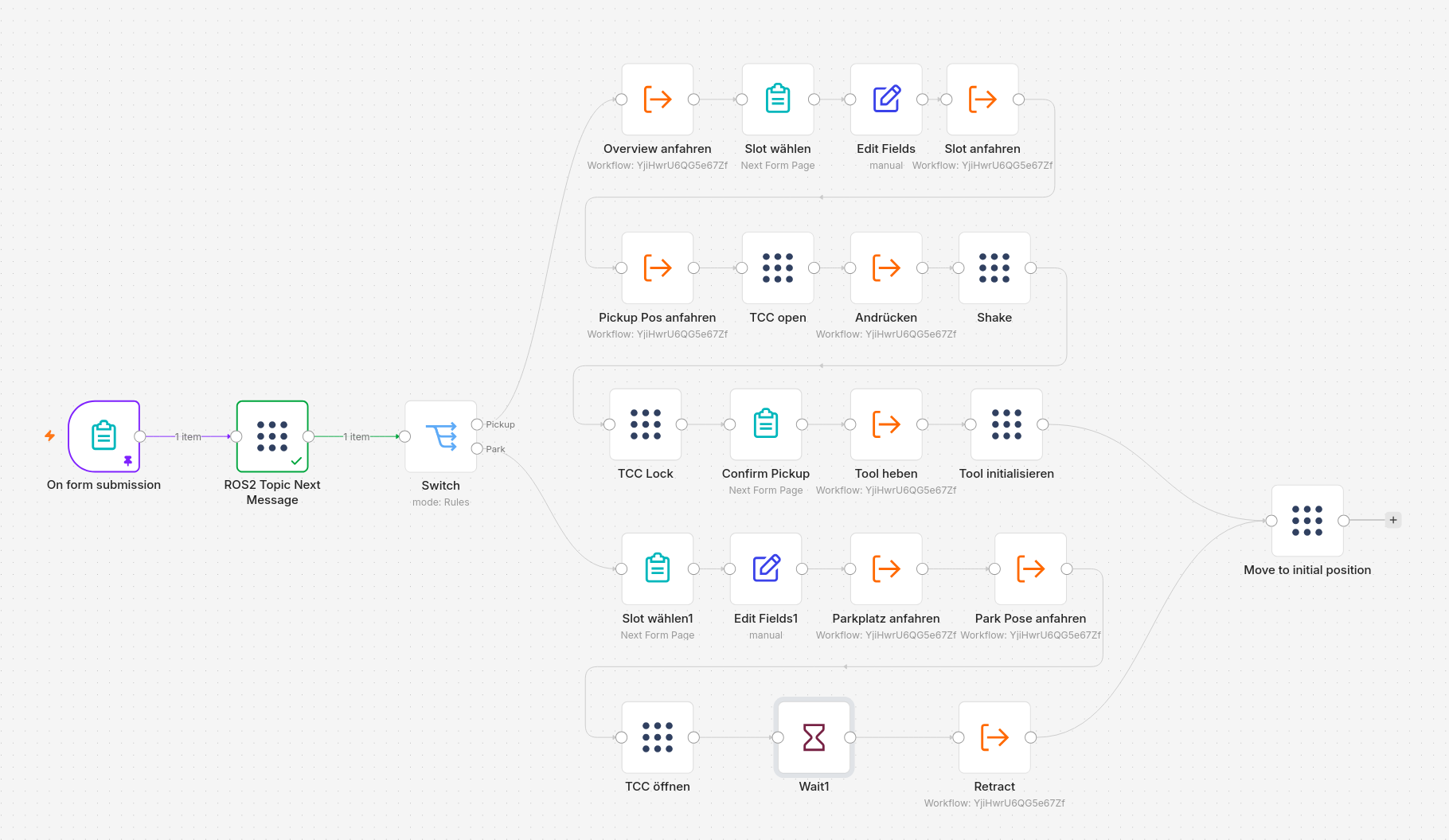

A simulated rover offering real ROS 2 topics, services and actions, driven by eleven n8n workflows — and a read-only live view anyone can open. Send it to the lake from your phone, watch the battery watchdog preempt a patrol, or ask the agent what interfaces the robot has.
Runs in your browser
The policy family from the first of the two systems, solving PushT entirely in the browser: Chipmunk2D physics as WASM, inference on WebGPU. Drag the agent away and watch the policy recover; move the guidance weight and watch what it does — and does not — change.
On the Hugging Face Hub
Every episode the manipulator was taught, in LeRobot’s dataset viewer: camera streams, joint states and actions, scrubbable frame by frame. This is the raw material behind the policy — what a demonstration actually looks like, including the ones where the operator fumbled.
End to end, on the arm
The pipeline is demonstrated end to end on the manipulator. The deployed policy turns a rotary panel switch on roughly four attempts in five — below a teleoperating human, but repeatable until it succeeds. Lever switches, whose motion first tensions and then snaps over, are harder and carry fewer demonstrations.
Still open
Plug insertion is the one substep still open, and for a reason worth stating plainly: an operator cannot teleoperate it well enough to demonstrate it, so there is nothing to imitate. A purpose-built tool now exists but has not yet been used to record it.
LIBERO rollouts
Evaluation episodes of the policies compared in the report. Filenames in the source encode policy, task, outcome and episode; these are three pairs where the difference is visible rather than statistical.
GOAL suite — “open the middle drawer of the cabinet”
The skill is present in the expert demonstrations and absent from the base policy’s own rollouts. Rollout data sharpens behaviour a policy already shows; behaviour it lacks has to come back from the demonstrations, which is what co-training mixes in.
LONG suite — one subgoal against two
The suite average is dragged down by instructions that chain two subgoals, because the error of each compounds. Single-subgoal tasks in the same suite reach 70–80 %.
SPATIAL suite — the same task, two post-training recipes
Co-training is not uniformly better. On this SPATIAL task the rollout-only policy succeeds where the co-trained one fails — a reminder that the suite averages in the report are averages, and that SPATIAL is the suite most sensitive to guidance.
